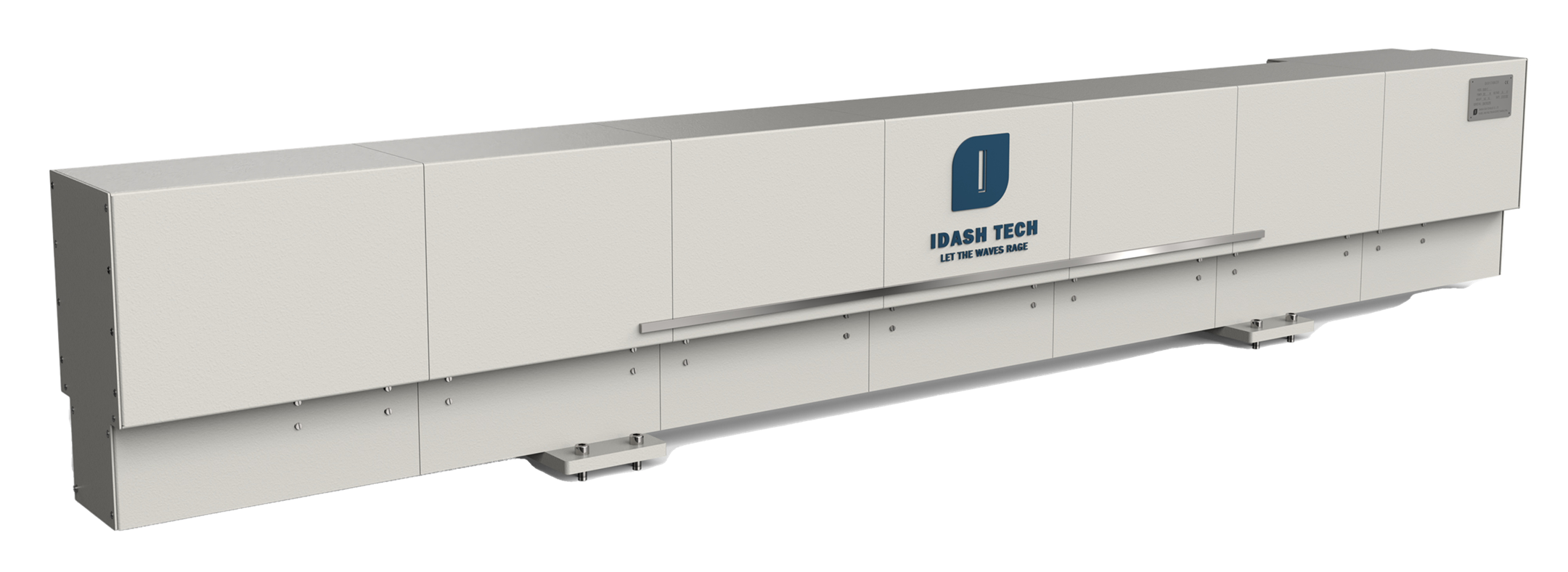

IDash 1S

The ID 1 is the world's first comercialized moving weight stabilizer for small boat. It's the product that changed the boating experience forever! Specially designed to stabilize boats below 30 feet,or up to ~5 tons. It does not require any waiting time and can enter stabilizing mode at any moment. In harsh sea conditions, it consumes no electricity and can convert wave energy into electrical energy, thereby recharging the battery. When the vessel is not rolling, the system incurs no energy loss, significantly saving electrical energy.
  • IDash 1S

Description

IDash 1S
Specifications
Boat Size Range  ~23-30’ (7 - 9 meters)
Boat Weight up to ~5 tons
Dimensions  (4.0~1.5)  L x 0.18 W x 0.356 H (meters)
Weight 145 Kg
Power Input 0 - 40 Amps @ 12 VDC
Rated Roll Period  2.5 s
Rated Anti-Rolling Torque 2,000 N-M
Peak Power   0.4KW
Operating Power  -0.2 ~ +0.4 KW(negative indicates reverse charging)
Ambient Air Temperature -20℃ ~ +50℃
Noise Output 68 ~ 72 dCB
