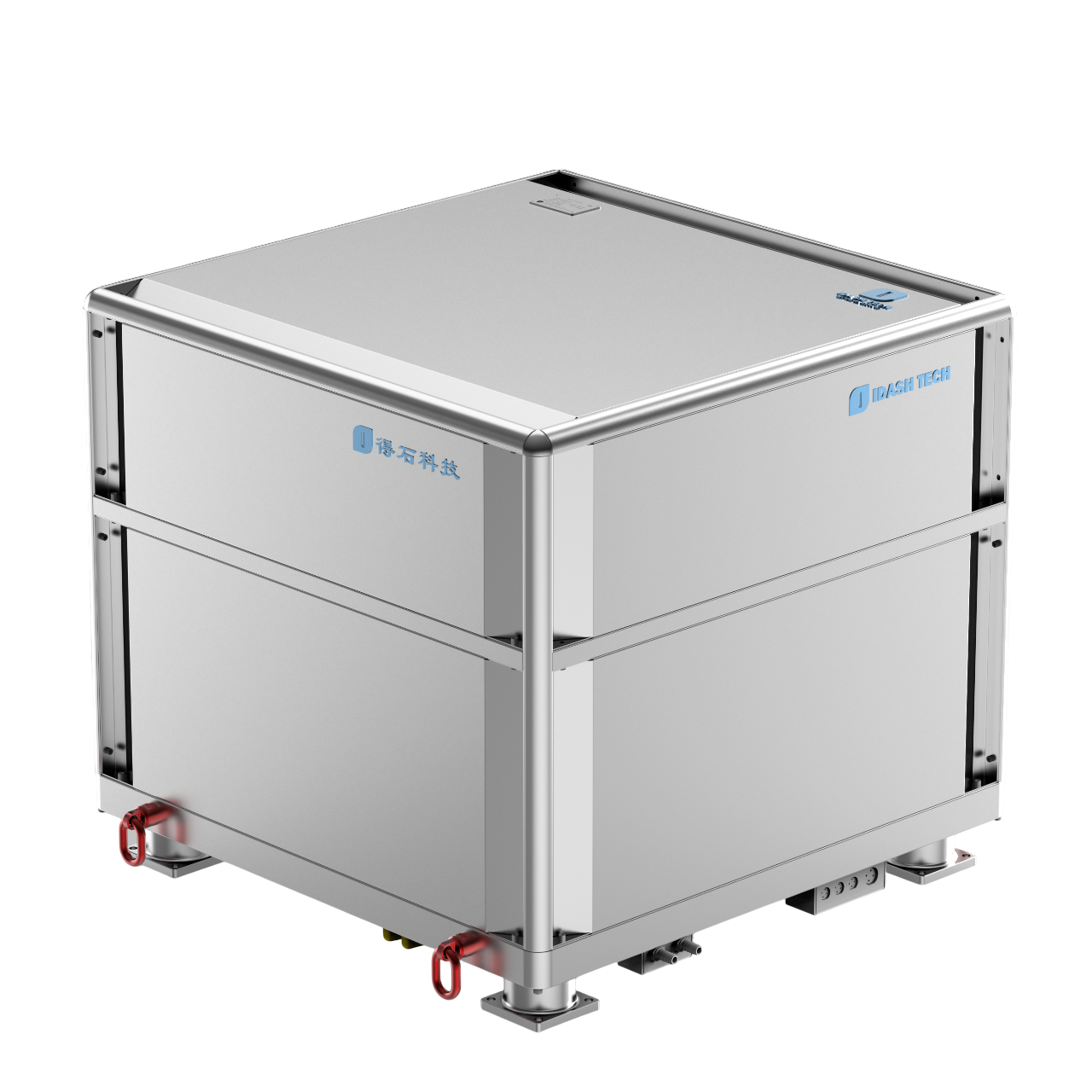

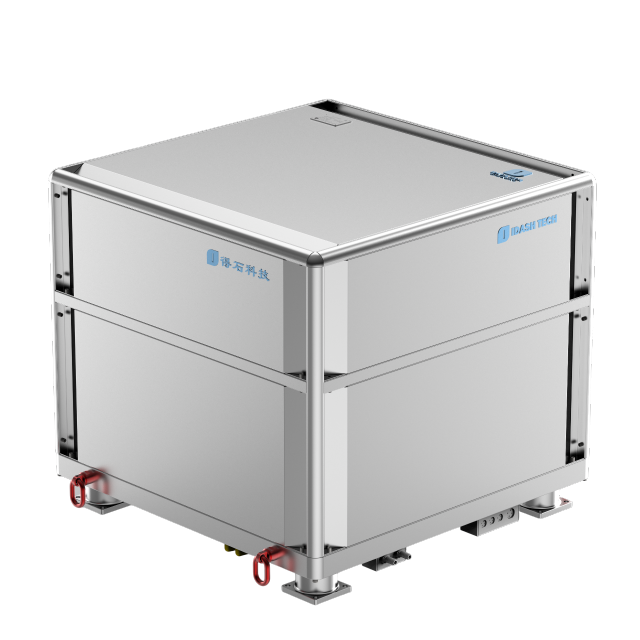

| IDP 30 | |
| Specifications | |
| Boat Size Range | ~78-98’ (24 - 30 meters) |
| Boat Weight | up to ~90 tons |

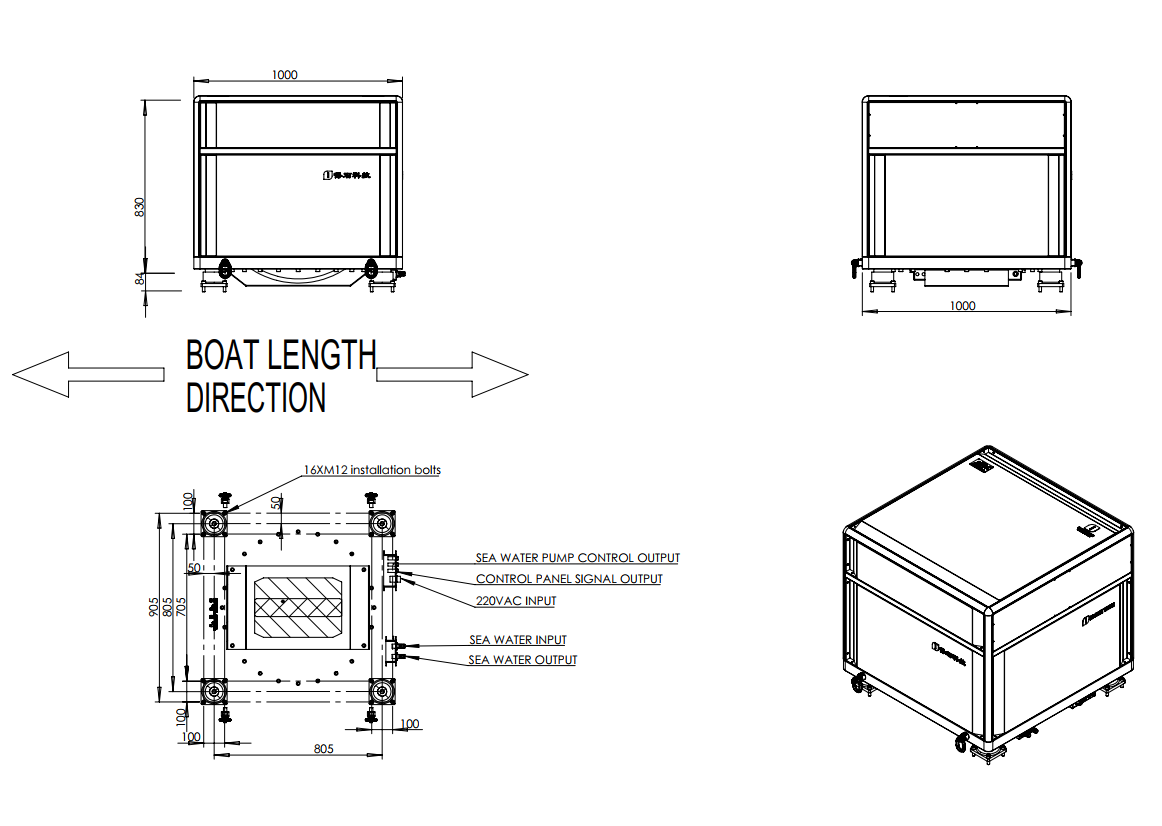

| Dimensions | 1.0 L x 1.0 W x 0.91 H (meters) |
| Weight | 1450 Kg |
| Power Input | 20 Amps @ 380 VAC, 50/60Hz |
| Rated Angular Momentum | 30 KN-M-S |
| Rated Anti-Rolling Torque | 150 KN-M |
| Spool-up Time to Max RPM | 50 minutes |
| Spool-up Time to Stabilization | 35 minutes |
| Spool-up Power | 8KW |
| Operating Power | 6 – 8 KW |
| Ambient Air Temperature | -20℃ ~ +50℃ |
| Noise Output | 68 ~ 72 dCB |
 |
