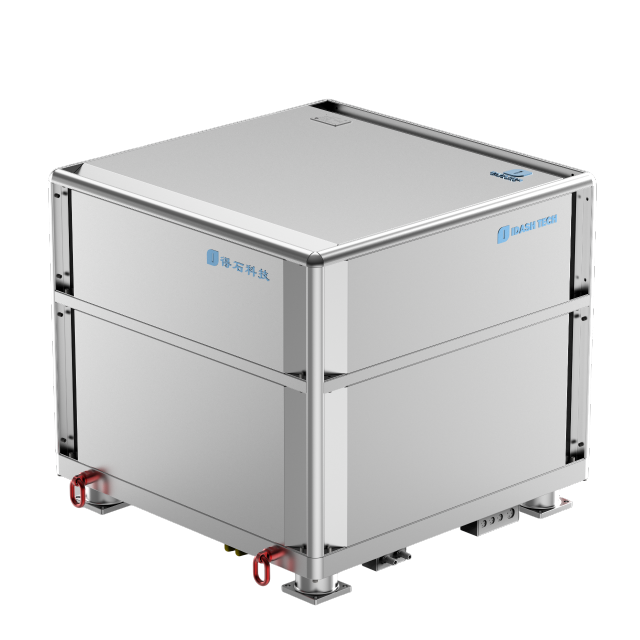

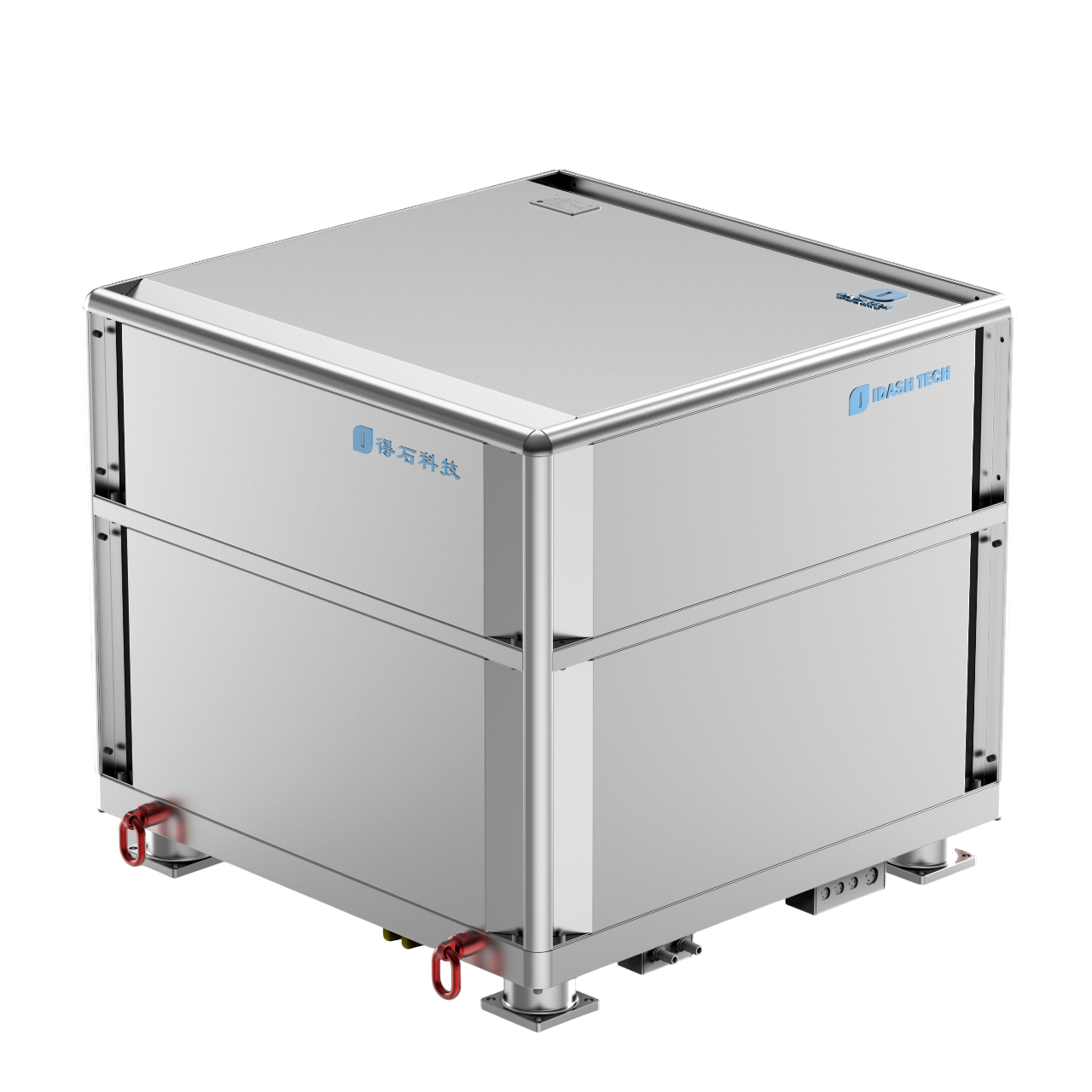

| IDP 20 | |
| Specifications | |
| Boat Size Range | ~72-92’ (22 - 28 meters) |
| Boat Weight | up to ~80 tons |

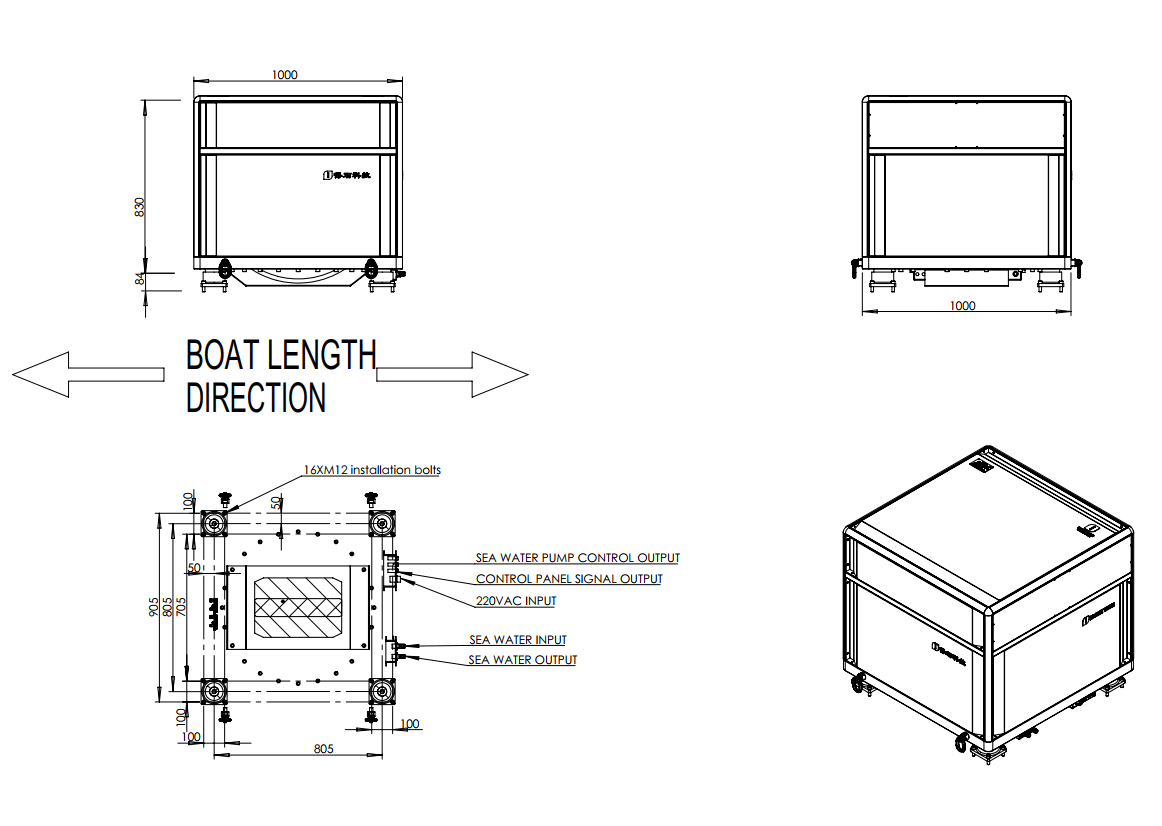

| Dimensions | 1.0 L x 0.95 W x 0.91 H (meters) |
| Weight | 1150 Kg |
| Power Input | 30 Amps @ 380 VAC, 50/60Hz |
| Rated Angular Momentum | 20 KN-M-S |
| Rated Anti-Rolling Torque | 100 KN-M |
| Spool-up Time to Max RPM | 50 minutes |
| Spool-up Time to Stabilization | 30 minutes |
| Spool-up Power | 6KW |
| Operating Power | 4 – 6 KW |
| Ambient Air Temperature | -20℃ ~ +50℃ |
| Noise Output | 68 ~ 72 dCB |
