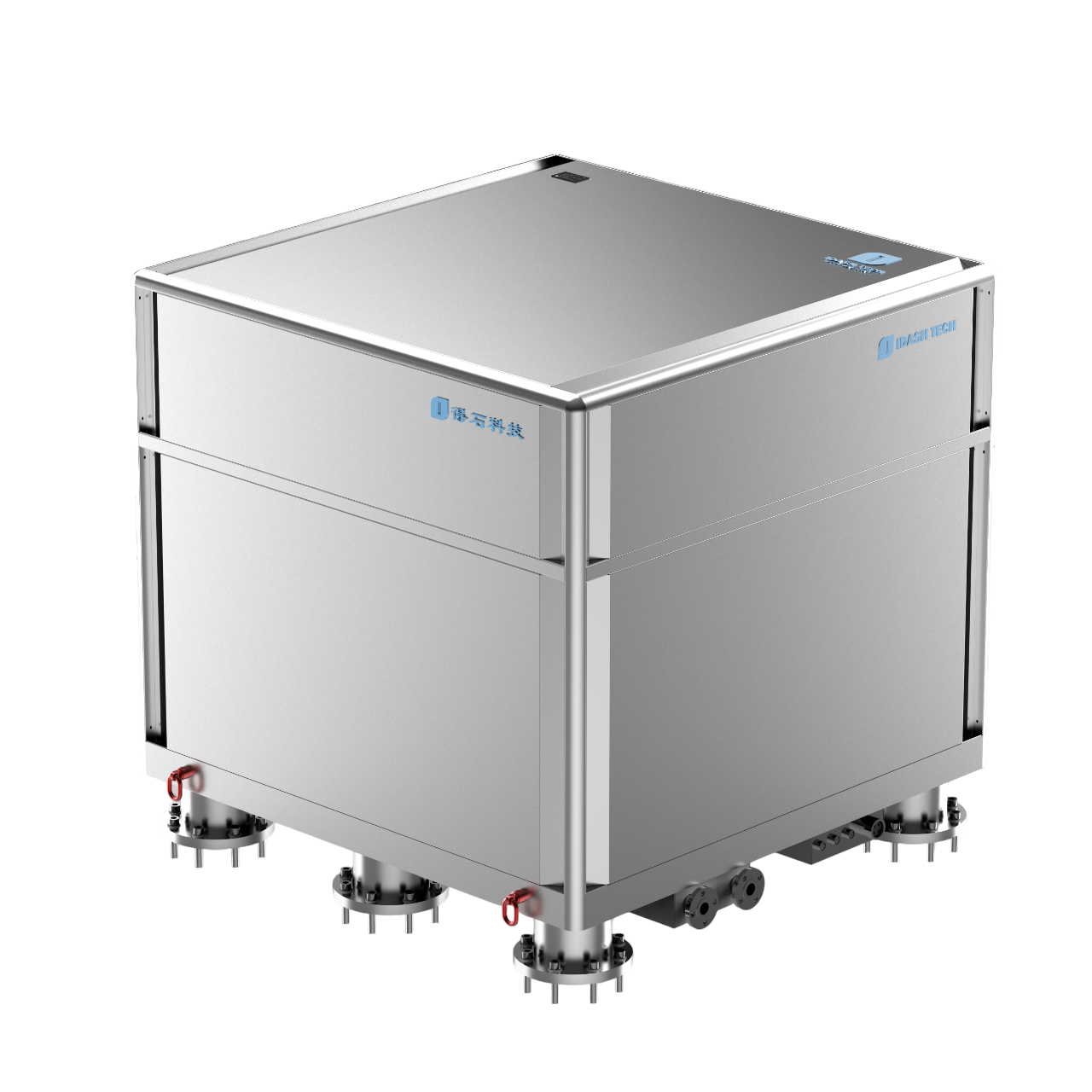

| IDP 80 | |
| Specifications | |
| Boat Size Range | ~105-125’ (32 - 38 meters) |
| Boat Weight | up to ~200 tons |

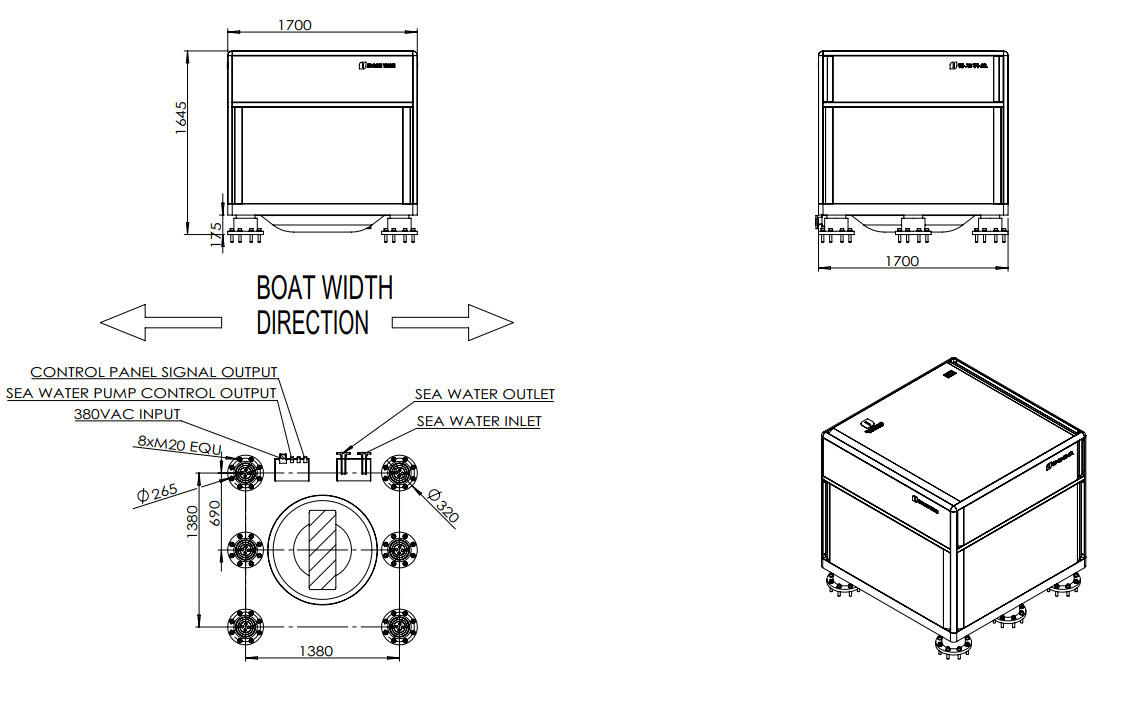

| Dimensions | 1.7 L x 1.7 W x 1.645 H (meters) |
| Weight | 2958 Kg |
| Power Input | 30 Amps @ 380 VAC, 50/60Hz |
| Rated Angular Momentum | 80 KN-M-S |
| Rated Anti-Rolling Torque | 400 KN-M |
| Spool-up Time to Max RPM | 50 minutes |
| Spool-up Time to Stabilization | 30 minutes |
| Spool-up Power | 14 KW |
| Operating Power | 10 – 14 KW |
| Ambient Air Temperature | -20℃ ~ +50℃ |
| Noise Output | 68 ~ 72 dCB |
 |
