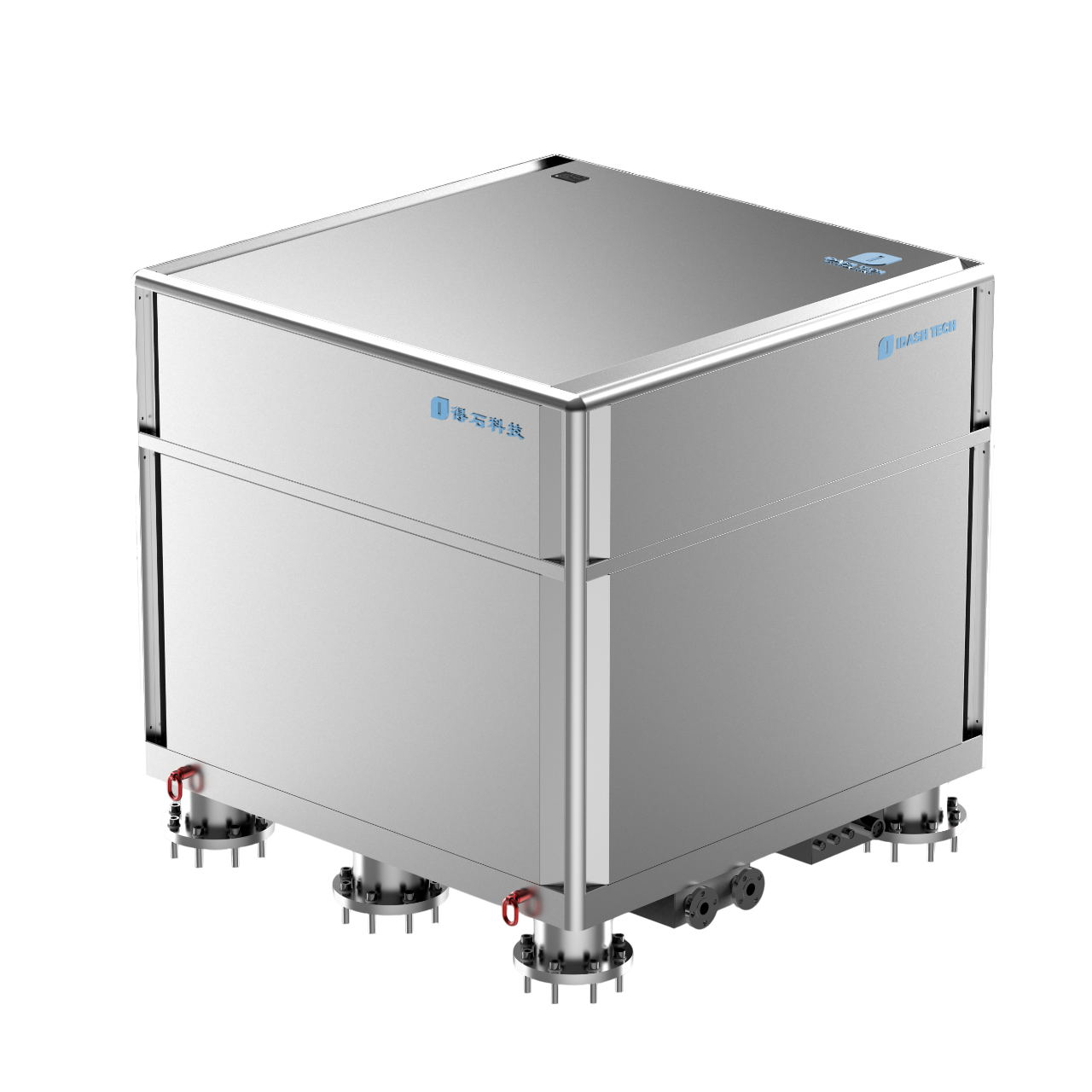

| IDP 200 | |
| Specifications | |
| Boat Size Range | ~131-164’ (40 - 50 meters) |
| Boat Weight | up to ~500 tons |

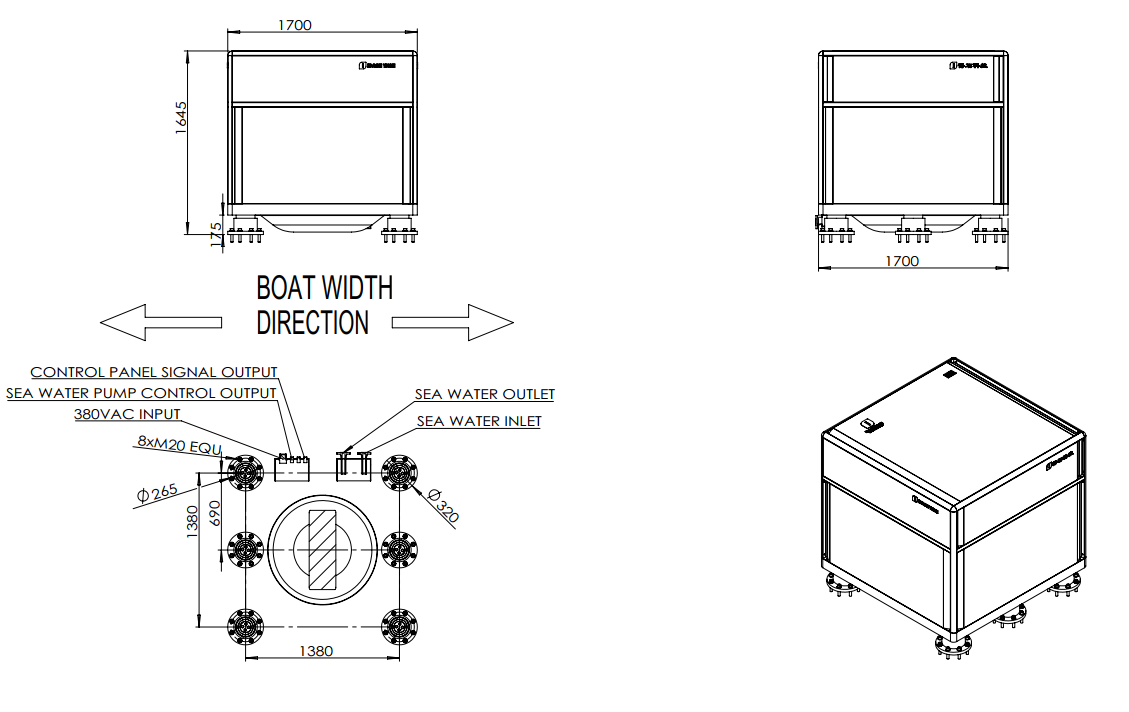

| Dimensions | 1.7 L x 1.7 W x 1.645 H (meters) |
| Weight | 5865 Kg |
| Power Input | 60 Amps @ 380 VAC, 50/60Hz |
| Rated Angular Momentum | 200 KN-M-S |
| Rated Anti-Rolling Torque | 600 KN-M |
| Spool-up Time to Max RPM | 50 minutes |
| Spool-up Time to Stabilization | 30 minutes |
| Spool-up Power | 30KW |
| Operating Power | 15 – 30 KW |
| Ambient Air Temperature | -20℃ ~ +50℃ |
| Noise Output | 68 ~ 72 dCB |
 |
