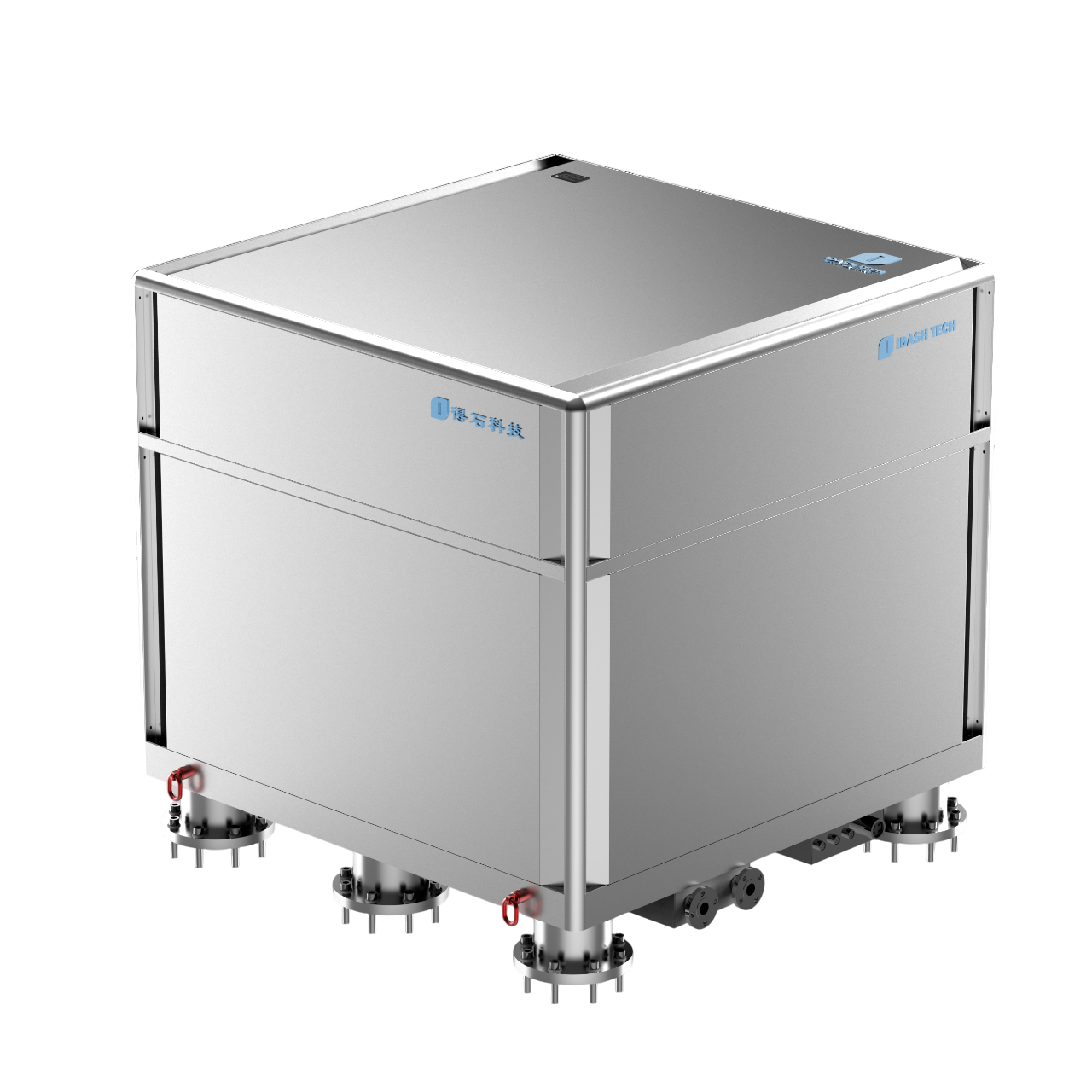

| IDP 300 | |
| Specifications | |
| Boat Size Range | ~131-197’ (40 - 60 meters) |
| Boat Weight | up to ~600 tons |

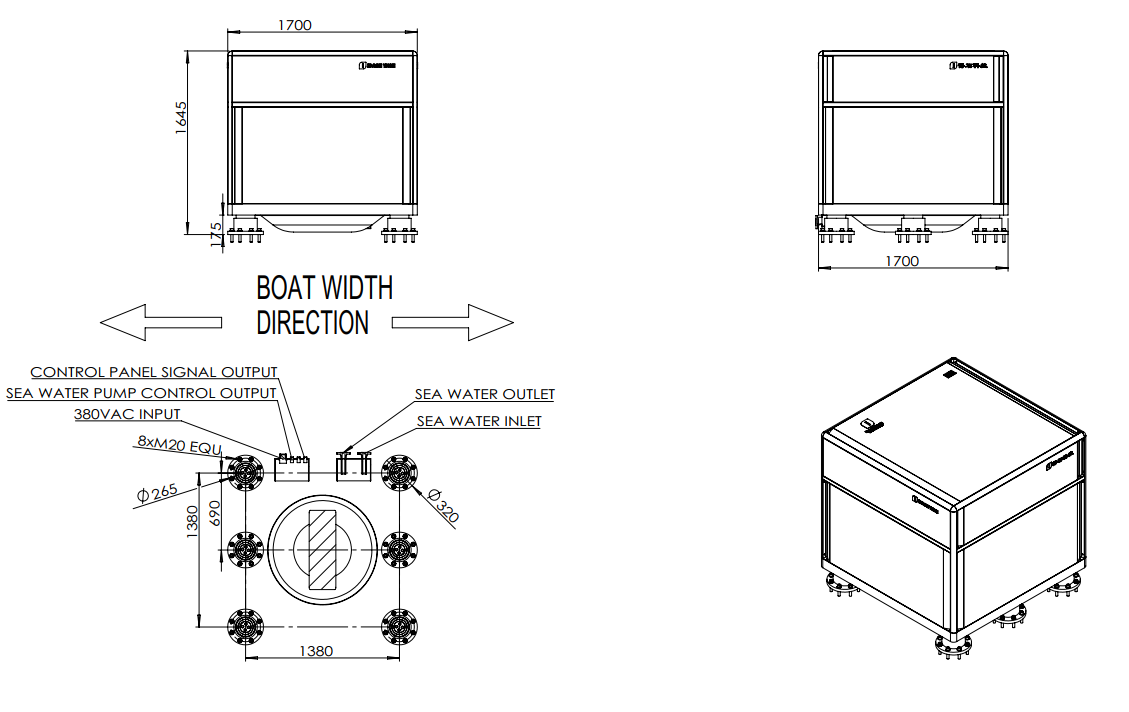

| Dimensions | 1.7 L x 1.7 W x 1.645 H (meters) |
| Weight | 9580 Kg |
| Power Input | 80 Amps @ 380 VAC, 50/60Hz |
| Rated Angular Momentum | 300 KN-M-S |
| Rated Anti-Rolling Torque | 600 KN-M |
| Spool-up Time to Max RPM | 50 minutes |
| Spool-up Time to Stabilization | 35 minutes |
| Spool-up Power | 40KW |
| Operating Power | 20 – 40 KW |
| Ambient Air Temperature | -20℃ ~ +50℃ |
| Noise Output | 68 ~ 72 dCB |
 |
